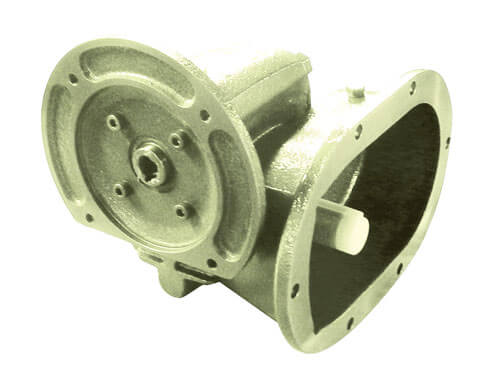

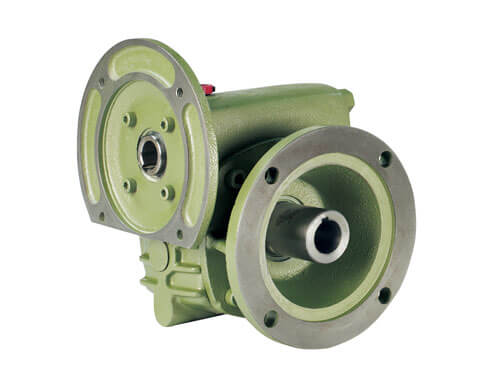

【Dual-Flange Gear Reducer】Front-and-Rear Flange Coupling for Ultimate Modular Integration

The RGL Dual-Flange Gear Reducer is engineered for modern automated equipment that demands direct flange coupling on both ends, precise alignment, and high installation integration. The defining feature of this series is its standardized flange configuration on both the input and output sides. This allows a direct, seamless connection to standard motors while locking directly onto the machine frame via the output flange, eliminating feet and extra coupling space.

The internal gearbox utilizes a high-strength integrated design, delivering exceptional concentricity and torsional rigidity. The precision-ground and heat-treated gears provide quiet, low-wear, and high-efficiency kinetic output across both high and low operational speeds.



  • Highly Integrated Dual Flanges: Equipped with a motor flange at the input and a machinery mounting flange at the output, eliminating couplings and foot-mount space for an ultra-streamlined configuration.
  • Absolute Concentricity & Rigidity: High-precision machined flange faces guarantee perfect shaft alignment, significantly reducing non-concentric wear and ensuring exceptionally smooth operation.
  • Strict Hermetic Sealing for Versatile Environments: The fully sealed flange-coupled structure, fitted with premium dustproof and wear-resistant oil seals, is perfectly suited for highly demanding and clean automated production environments.



【Applications】 Highly suitable for servo or stepper motor drive systems, high-precision packaging machinery, robotic external 7th axis systems, automated dispensing/welding specialized machines, and precision linear stages.
