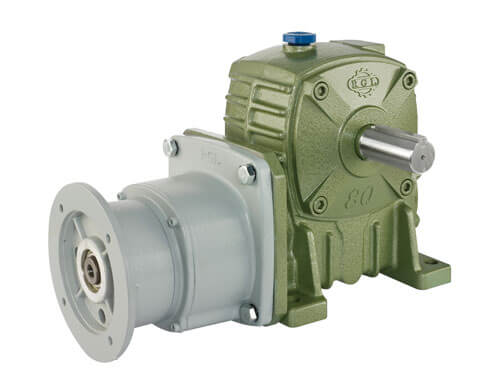

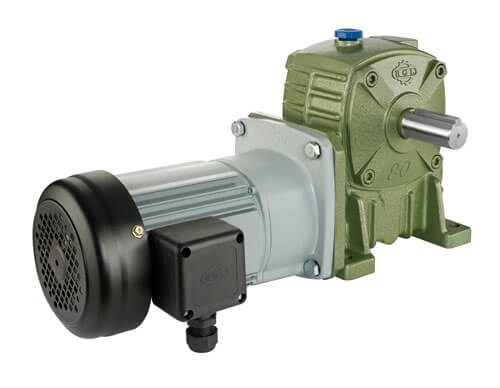

【Double-Stage Worm-Gear Speed Reducer】Perfect Synergy of Helical Gears and Worms for High Efficiency & Low Heat

The RGL Double-Stage Worm-Gear Speed Reducer is designed for modern automated equipment requiring right-angle drives, large reduction ratios, and strict control over transmission efficiency and heat generation. This series features an innovative "hybrid transmission structure": the first stage utilizes high-precision helical gears for high-speed pre-reduction to boost efficiency, while the second stage connects to classic worm gearing for right-angle direction changes and exceptional torque multiplication.

This dual-stage hybrid design effectively overcomes the low-efficiency bottlenecks of traditional single-stage worm reducers, significantly reducing heat build-up and energy consumption during continuous duty while preserving the physical benefits of smooth, quiet self-locking characteristics.



  • High-Efficiency Hybrid Design: Combines high-performance helical gears with large-ratio worms, delivering a transmission efficiency that noticeably outperforms conventional worm reducers.
  • Low Heat Generation & Eco-Friendly: The optimized drivetrain minimizes sliding friction, lowering operational temperatures to extend the lifespan of lubricants and seals.
  • Compact Right-Angle Layout: The 90-degree right-angle output optimizes lateral and longitudinal space, perfect for space-restricted automated machinery.



【Applications】 Widely used in automated conveyor lines, food filling and packaging machinery, pharmaceutical machinery, textile dyeing equipment, and clean-room automation lines.
