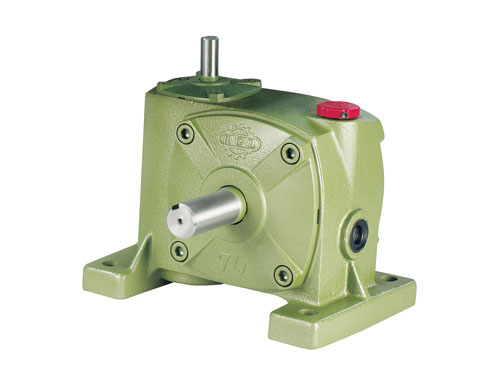

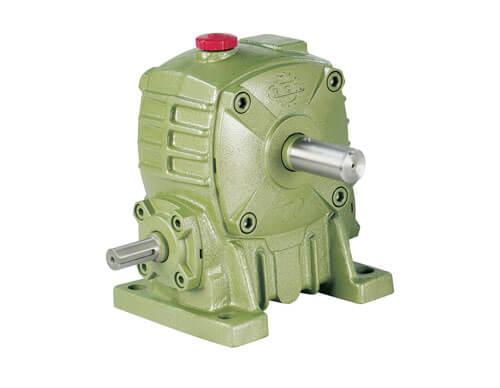

【Single-Stage Vertical Worm Gear Reducer】90-Degree Right-Angle Drive with Self-Locking Security

The RGL Single-Stage Vertical Worm Gear Reducer is engineered for demanding industrial environments that require right-angle drive, vertical installation, and high safety coefficients. Featuring a 90-degree intersection between the input and output shafts, combined with a vertical flange structure, it effectively reduces horizontal footprint, offering maximum layout flexibility. The internal assembly features precision-meshed high-quality alloy steel worms and wear-resistant bronze worm wheels, ensuring smooth and ultra-quiet operation. At high gear ratios, it provides an inherent "self-locking function," effectively preventing load reversal to deliver irreplaceable safety for lifting and suspending applications.



  • Right-Angle Vertical Design: The 90-degree transmission paired with a vertical flange maximizes space efficiency, perfect for vertical machinery requiring right-angle turns.
  • Inherent Self-Locking Security: Delivers excellent reverse self-locking capability under high ratios, preventing equipment slippage or reversal during shutdown to guarantee operation safety.
  • Robust Wear Resistance & Long Lifespan: Premium wear-resistant worm wheel materials paired with high-quality oil seals provide outstanding shock resistance and long service intervals under heavy loads.



【Applications】 Widely used in vertical agitators, hoisting conveyor systems, gate control equipment, packaging machinery, and various automated production lines requiring self-locking features.
