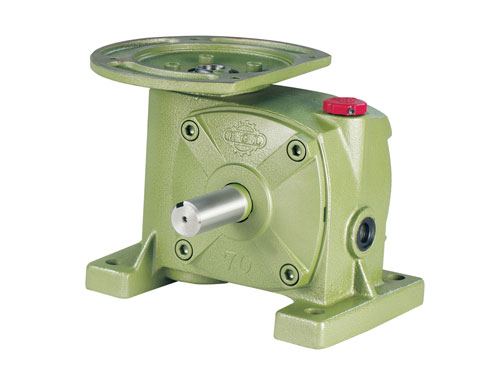

【Single-Stage Vertical Direct-Coupled Gear Motor】Coupling-Free & Ultra-Compact Modular Vertical Drive

The RGL Single-Stage Vertical Direct-Coupled Gear Motor integrates vertical flange installation and a direct motor interface, making it the ideal choice for streamlining mechanical configurations and reducing maintenance costs. Equipped with a standard IEC motor flange, it eliminates the need for traditional couplings and alignment alignment time, while minimizing the overall unit size.

The casing features high-rigidity casting with outstanding vertical axial support. The internal high-precision gears undergo hard-surface grinding and heat treatment, achieving over 95% transmission efficiency to deliver quiet, low-heat continuous power that easily withstands high-frequency start-stop cycles.



  • Standard IEC Motor Direct Coupling: Directly couples with standard IEC motors (explosion-proof, brake, inverter, etc.), allowing rapid replacement and minimizing maintenance downtime.
  • Advanced Vertical Leak-Proof Design: Engineered with premium wear-resistant seals and optimized oil-return structures against gravity-induced seepage, guaranteeing zero oil leakage during prolonged vertical use.
  • Space-Saving Integrated Flange: Flange-mounted for vertical coupling to the machinery chassis, minimizing drivetrain length—perfect for installation environments with restricted space.



【Applications】 Widely applied in liquid agitators, chemical reactors, pharmaceutical machinery, plastic extruders, vertical hoists, and environmental water treatment systems.
